BU3150AF - NPN Power Transistor

Product Overview

Part number	BU3150AF
Manufacturer	Shenzhen Jingdao Electronic
File Size	139.31 KB
Description	NPN Power Transistor
Datasheet	BU3150AF Datasheet

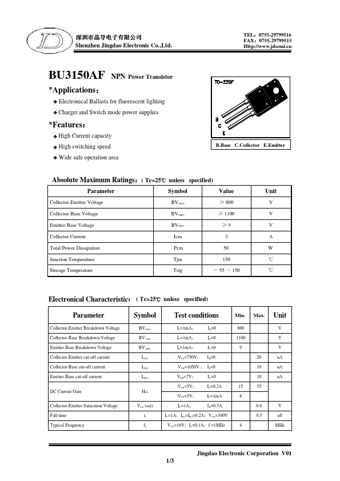

Additional preview pages of the BU3150AF datasheet.

High Current capacity speed B. Base C. Collector E. Emitter.
High switching.
Wide safe operation area Absolute Maximum Ratings：( Tc=25℃ unless specified) Parameter Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Total Power Dissipation Junction Temperature Storage Temperature Symbol BVCEO BVCBO BVEBO Icm Pcm Tjm Tstg Value ≥ 800 ≥ 1100 ≥9 3 50 150 － 55 ～ 150 Unit V V V A W ℃ ℃ Electronical Characteristic： ( Tc=25℃ unless specified) Paramet.
