S20LC20U - Super Fast Recovery Rectifiers(200V 20A)

Datasheet Summary

Features

  • œ Low noise.
  • œ trr35ns.
  • œ Small ƒÆ ƒÆjc jc.
  • œ Dielectric strength 2kV guaranteed.

📥 Download Datasheet

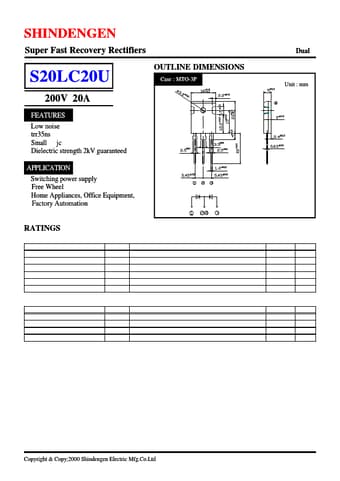

Datasheet preview – S20LC20U

Datasheet Details

Part number S20LC20U
Manufacturer Shindengen Electric Mfg.Co.Ltd
File Size 391.69 KB
Description Super Fast Recovery Rectifiers(200V 20A)
Datasheet download datasheet S20LC20U Datasheet
