S20WB20 - Bridge Diode(200V 20A)

Shindengen Electric Mfg.Co.Ltd

Datasheet Details

Part number	S20WB20
Manufacturer	Shindengen Electric Mfg.Co.Ltd
File Size	312.37 KB
Description	Bridge Diode(200V 20A)
Datasheet	S20WB20 Datasheet
Additional preview pages of the S20WB20 datasheet.

📁 Similar Datasheet

S20WB60 - Bridge Diodes (Shindengen)
S20WB80 - Bridge Diode (SHINDENGEN)
S20 - Silicon Power Rectifier (Microsemi Corporation)
S2000 - Silicon NPN Transistor (Toshiba)
S2000 - NPN Transistor (INCHANGE)
S2000 - SILICON POWER TRANSISTOR (SavantIC)
S2000A - Silicon NPN Transistor (Toshiba)
S2000A - SILICON POWER TRANSISTOR (SavantIC)
S2000AF - High voltage NPN Power transistor (ST Microelectronics)
S2000AF - SILICON POWER TRANSISTOR (SavantIC)

Other Datasheets by Shindengen Electric Mfg.Co.Ltd

S20L60 - Super Fast Recovery Rectifiers(600V 20A)
S20LC20 - Super Fast Recovery Rectifiers(200V 20A)
S20LC20U - Super Fast Recovery Rectifiers(200V 20A)
S20LC40 - Super Fast Recovery Rectifiers(400V 20A)
S20SC4M - Schottky Rectifiers (SBD) (40V 20A)
S20SC9M - Schottky Rectifiers

Full PDF Text Transcription

Click to expand full text

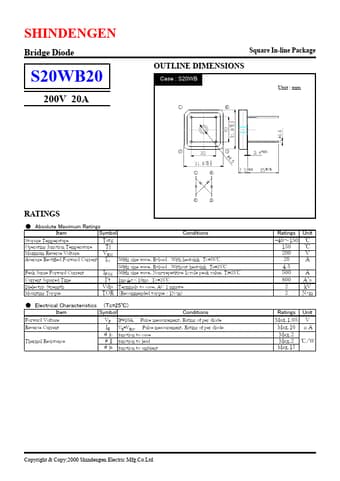

SHINDENGEN Bridge Diode Square In-line Package S20WB20 200V 20A OUTLINE DIMENSIONS Case : S20WB Unit : mm RATINGS ●　Absolute Maximum Ratings Item Symbol Conditions Tstg Storage Temperature Operating Junction Temperature Tj VRM Maximum Reverse Voltage IO 50Hz sine wave, R-load With heatsink Tc=76℃ Average Rectified Forward Current Peak Surge Forward Current Current Squared Time Dielectric Strength Mounting Torque IFSM I2t Vdis TOR 50Hz sine wave, R-load Without heatsink Ta=25℃ 50Hz sine wave, Non-repetitive 1cycle peak value, Tj=25℃ 1ms≦t＜10ms　Ｔc=25℃ Terminals to case, AC 1 minute （Recommended torque : 1N･m） Ratings Unit -40～150 ℃ 150 ℃ 200 V 20 A 4.5 500 A 800 A2ｓ 2 kV 2 N･m Ratings Unit Max.1.05 V Max.10 μA Max.2 Max.2 ℃/W Max.

Published: Apr 17, 2005 |
