S25VB20 Datasheet - Shindengen Electric Mfg.Co.Ltd

S25VB20 Bridge Diode(200V 25A)

SHINDENGEN Bridge Diode Square In-line Package S25VB20 200V 25A OUTLINE DIMENSIONS Case : S25VB Unit : mm RATINGS 　Absolute Maximum Ratings Item Symbol Tstg Storage Temperature Tj Operating Junction Temperature VRM Maximum Reverse Voltage IO 50Hz sine wave, R-load Average Rectified Forward Current Peak Surge Forward Current Current Squared Time Dielectric Strength Mounting Torque Conditions With heatsink, Tc=85℃ 50Hz sine wave, R-load Without heatsink, Ta=40℃ IFSM 50Hz sine wave, Non-r.

S25VB20_ShindengenElectricMfg.Co.Ltd.pdf

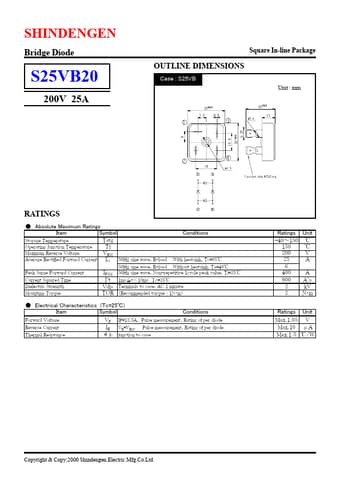

S25VB20 Datasheet Preview — Preview of S25VB20 PDF

Datasheet Details

Part number:

S25VB20

Manufacturer:

Shindengen Electric Mfg.Co.Ltd

File Size:

292.93 KB

Description:

Bridge diode(200v 25a).
