SF20JC10 Datasheet - Shindengen Electric

SF20JC10 Schottky Rectifiers

www.DataSheet4U.com SHINDENGEN Schottky Rectifiers (SBD) Dual SF20JC10 100V 20A OUTLINE DIMENSIONS Case : FTO-220 Unit : mm RATINGS œAbsolute Maximum Ratings i If not specified, Tc=25 Žj Item Symbol Conditions Storage Temperature Tstg Operating Junction Temperature Tj Maximum Reverse Voltage VRM Average Rectified Forward Current 50Hz sine wave, R-load, Rating for each diode Io/2, Tc=114Ž IO Peak Surge Forward Current IFSM 50Hz sine wave, Non-repetitive 1 cycle peak value, Tj=25Ž Dielectric S.

SF20JC10_ShindengenElectric.pdf

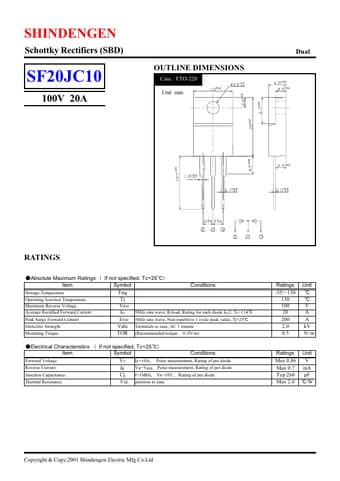

Preview of SF20JC10 PDF
SF20JC10 Datasheet Preview Page 2 SF20JC10 Datasheet Preview Page 3

Datasheet Details

Part number:

SF20JC10

Manufacturer:

Shindengen Electric

File Size:

281.79 KB

Description:

Schottky rectifiers.
