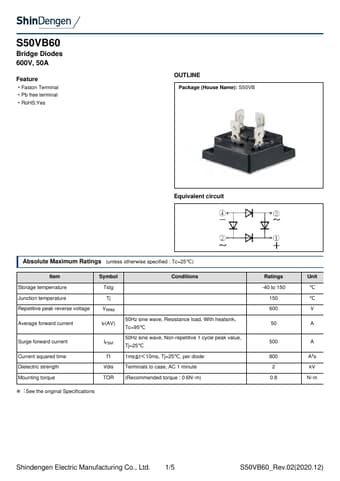

S50VB60 Bridge Diodes 600V, 50A Feature Faston Terminal Pb free terminal RoHS:Yes OUTLINE Package (House Name): S50VB Equivalent circuit Absolute Maximum Ratings (unless otherwise specified : Tc=25℃) Item Storage temperrature Junction temperature Repetitive peak reverse voltage Average forward current Surge forward current Current squared time Dielectric strength Mounting torque Symbol Conditions Tstg Tj VRRM IF(AV) 50Hz sine wave, Resistance load, With heatsink, Tc=95℃ 50Hz sine wave, Non-repetitive 1 cycle peak value, IFSM Tj=25℃ I²t 1ms≦t＜10ms, Tj=25℃, per diode Vdis Terminals to case, AC 1 minute TOR (Recommended torque : 0.6N･m) ※︓See the original Specifications Ratings -40 to 150 150 600 50 500 800 2 0.
