US30KB80R - Bridge Diodes

📥 Download Datasheet

Datasheet preview – US30KB80R

Datasheet Details

Part number US30KB80R
Manufacturer Shindengen
File Size 966.19 KB
Description Bridge Diodes
Datasheet download datasheet US30KB80R Datasheet
Additional preview pages of the US30KB80R datasheet.

📁 Similar Datasheet

  • US30 - RECTIFIERS ASSEMBLIES (Microsemi Corporation)
  • US3004 - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER (UNISEM)
  • US3005 - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER (UNISEM)
  • US3007 - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK PLUS NON SYNCHRONOUS / LDO CONTROLLER (UNISEM)
  • US301 - 0.2A SINGLE CHANNEL CURRENT-LIMITED LOAD SWITCH (Unisonic Technologies)
  • US3010 - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER IC (UNISEM)
  • US3010A - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER IC (UNISEM)
  • US3011 - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER IC (UNISEM)
  • US3012 - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER IC (UNISEM)
  • US3012A - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER IC (UNISEM)
Other Datasheets by Shindengen

Full PDF Text Transcription

Click to expand full text

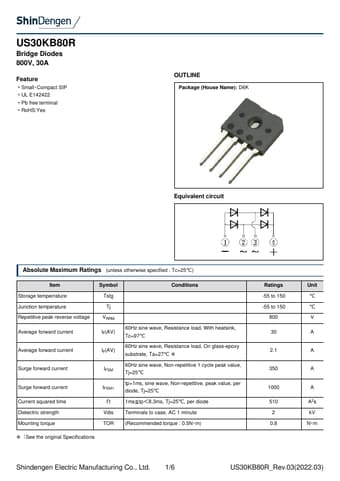

US30KB80R Bridge Diodes 800V, 30A Feature Small･Compact SIP UL E142422 Pb free terminal RoHS:Yes OUTLINE Package (House Name): D6K Equivalent circuit Absolute Maximum Ratings (unless otherwise specified : Tc=25℃) Item Storage temperrature Junction temperature Repetitive peak reverse voltage Average forward current Average forward current Surge forward current Surge forward current Current squared time Dielectric strength Mounting torque Symbol Conditions Tstg Tj VRRM IF(AV) 60Hz sine wave, Resistance load, With heatsink, Tc=97℃ IF(AV) 60Hz sine wave, Resistance load, On glass-epoxy substrate, Ta=27℃ ※ 60Hz sine wave, Non-repetitive 1 cycle peak value, IFSM Tj=25℃ IFSM1 I²t tp=1ms, sine wave, Non-repetitive, peak value, per diode, Tj=25℃ 1ms≦tp＜8.
