AST10-2315D-M - AC/DC Converter

This page provides the datasheet information for the AST10-2315D-M, a member of the AST10-2303D-M AC/DC Converter family.

Datasheet Summary

Description

AST10-23XXD-M series AC-DC converters

Features

  • ultra-wide AC input and at the same time accepts DC input voltage, low power consumption, low ripple & noise, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/EN/UL62368/EN60335/ EN61558/IEC/EN60601-1/ANSI/AAMI ES60601-1 standards. The converters are widely used in industrial, power, medical treatment, home appliances, instrumentation, communication and civil.

📥 Download Datasheet

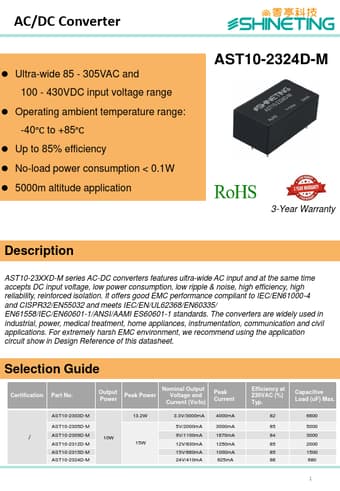

Datasheet preview – AST10-2315D-M

Datasheet Details

Part number AST10-2315D-M
Manufacturer Shineting
File Size 848.57 KB
Description AC/DC Converter
Datasheet download datasheet AST10-2315D-M Datasheet
Additional preview pages of the AST10-2315D-M datasheet.

📁 Similar Datasheet

  • AST100 - Wirewound Resistor (Vishay)
  • AST11L - 5-3500 MHz MMIC Amplifier (Advanced Semiconductor Business)
  • AST130 - Wirewound Resistor (Vishay)
  • AST160 - Wirewound Resistor (Vishay)
  • AST163 - Low Noise Amplifier (Advanced Semiconductor Business)
  • AST175 - Wirewound Resistor (Vishay)
  • AST010 - Wirewound Resistor (Vishay)
  • AST012 - Wirewound Resistor (Vishay)
  • AST020 - Wirewound Resistor (Vishay)
  • AST025 - Wirewound Resistor (Vishay)
Other Datasheets by Shineting

Full PDF Text Transcription

Click to expand full text
AC/DC Converter ⚫ Ultra-wide 85 - 305VAC and 100 - 430VDC input voltage range ⚫ Operating ambient temperature range: -40℃ to +85℃ ⚫ Up to 85% efficiency ⚫ No-load power consumption < 0.1W ⚫ 5000m altitude application AST10-2324D-M 3-Year Warranty Description AST10-23XXD-M series AC-DC converters features ultra-wide AC input and at the same time accepts DC input voltage, low power consumption, low ripple & noise, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/EN/UL62368/EN60335/ EN61558/IEC/EN60601-1/ANSI/AAMI ES60601-1 standards. The converters are widely used in industrial, power, medical treatment, home appliances, instrumentation, communication and civil applications.
