FSM105, FSM101, FAST RECOVERY RECTIFIERS

FSM101 THRU FSM107 FAST RECOVERY RECTIFIERS Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere .

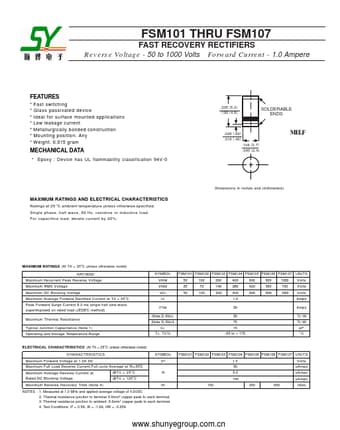

datasheet Preview Page 1 from Datasheet4u.com

FSM101-Shunye.pdf

FSM105 Datasheet Preview — This datasheet PDF includes multiple part numbers: FSM105, FSM101. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

FSM105, FSM101

Manufacturer:

Shunye

File Size:

55.28 KB

Description:

FAST RECOVERY RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: FSM105, FSM101.
Please refer to the document for exact specifications by model.

Features

* Fast switching
* Glass passivated device

Applications

* Low leakage current
* Metallurgically bonded construction
* Mounting position: Any
* Weight: 0.015 gram MECHANICAL DATA
* Epoxy : Device has UL flammability classification 94V-0 MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise
