MBR40150, MBR4035 Schottky Barrier Rectifiers

MBR40150 Description

MBR4035 - MBR40150 40.0 AMPS.Schottky Barrier Rectifiers .

MBR40150 Features

* Plastic material used carries Underwriters Laboratory Classifications 94V-0 Metal silicon rectifier, majority carrier conduction Low power loss, high efficiency High current capability, low forward voltage drop High surge capability For use in low voltage, high frequency inverters, free wheeling, a

MBR40150 Applications

* Guardring for overvoltage protection High temperature soldering guaranteed: 260oC/10 seconds,0.17”(4.3mm)from case Mechanical Data Cases: JEDEC TO-3P molded plastic body TO-3P Terminals: Pure tin plated, lead free. solderable per MIL-STD-750, Method 2026 Polarity: As marked Mounting position: Any

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR40150, MBR4035. Please refer to the document for exact specifications by model.

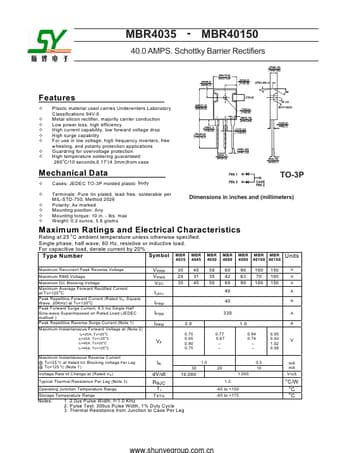

datasheet Preview Page 2

Datasheet Details

Part number
MBR40150, MBR4035
Manufacturer
Shunye
File Size
0.99 MB
Datasheet
MBR4035-Shunye.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: MBR40150, MBR4035.
Please refer to the document for exact specifications by model.
