SC2528 - 25 AMP SOZA CELL

This page provides the datasheet information for the SC2528, a member of the SC2524 25 AMP SOZA CELL family.

Datasheet Summary

Features

  • . . High current capability . . Low forward voltage drop . . Low leakage current . . High surge current capability.

📥 Download Datasheet

Datasheet preview – SC2528

Datasheet Details

Part number SC2528
Manufacturer Shunye
File Size 251.46 KB
Description 25 AMP SOZA CELL
Datasheet download datasheet SC2528 Datasheet
Additional preview pages of the SC2528 datasheet.

📁 Similar Datasheet

  • SC250 - (SC2xx) Thyristors / TRIAC (Semitronics)
  • SC2500 - CMOS Standard Cells (General Electric)
  • SC251 - (SC2xx) Thyristors / TRIAC (Semitronics)
  • SC2516 - Complete Three-in-One DDR Power (Semtech)
  • SC2546 - Dual Channel Hall-effect Switch (Semiment)
  • SC2556H - High Performance Current Mode PWM Controller (Safety-Chip)
  • SC2569 - High Performance Current Mode PWM Controller (Safety-Chip)
  • SC2570 - 2SC2570 (NEC)
  • SC2583 - High Performance Current Mode PWM Controller (Safety-Chip)
  • SC2585A - High Performance Multi-Mode PWM Controller (Safety-Chip)
Other Datasheets by Shunye

Full PDF Text Transcription

Click to expand full text

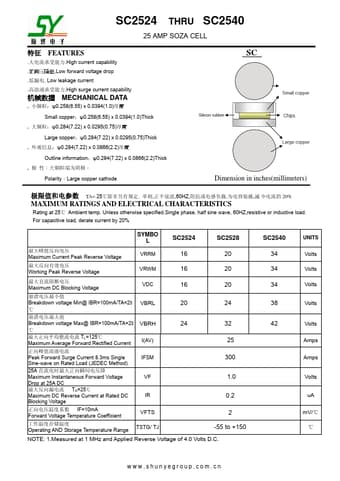

SC2524 THRU SC2540 25 AMP SOZA CELL FEATURES ..High current capability ..Low forward voltage drop .. Low leakage current ..High surge current capability MECHANICAL DATA . ：ψ0.258(6.55) x 0.0394(1.0) Small copper：ψ0.258(6.55) x 0.0394(1.0)Thick . ：ψ0.284(7.22) x 0.0295(0.75) Large copper：ψ0.284(7.22) x 0.0295(0.75)Thick . ：ψ0.284(7.22) x 0.0866(2.2) Outline information：ψ0.284(7.22) x 0.0866(2.2)Thick . ：。 Polarity：Large copper cathode SC Dimension in inches(millimeters) TA= 25℃. ,,60HZ,., 20% MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25℃ Ambient temp. Unless otherwise specified.Single phase, half sine wave, 60HZ,resistive or inductive load.
