SR740 SCHOTTKY BARRIER RECTIFIER

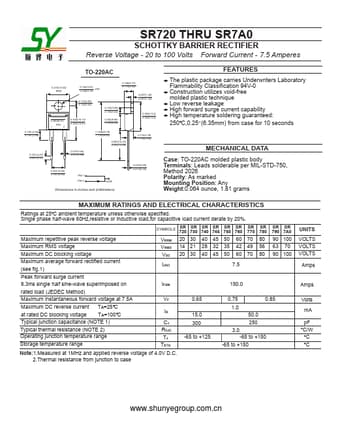

SR720 THRU SR7A0 SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 100 Volts Forward Current - 7.5 Amperes 0.160 (4.05) 0.140 (3.55) 0.105 (2.67) 0.095 (2.41) TO-220AC 0.415(10.54) MAX 0.410(10.41) 0.390(9.91) 1 PIN 2 0.154(3.91) 0.148(3.74) DIA 0.113(2.87) 0.103(2.62) 0.635(16.13) 0.625(15.87) 0.185(4.70) 0.175(4.44) 0.057(1.45) 0.051(1.30) 0.145(3.68) 0.135(3.43) 0.350(8.89) 0.330(8.38) 0.560(14.2) 0.530(13.4) 1.148(29.16) 1.118(28.40) 0.590(14.22) 0.530(13.46) 0.110(2.79) 0.100(2.

SR740 Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Construction utilizes void-free molded plastic technique Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 C,0.25”(6.35mm) from case for 10 seconds MECHANICAL DATA

SR720-Shunye.pdf

SR740 Datasheet Preview — This datasheet PDF includes multiple part numbers: SR740, SR720. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SR740, SR720

Manufacturer:

Shunye

File Size:

0.97 MB

Description:

Schottky barrier rectifier.

Note:

This datasheet PDF includes multiple part numbers: SR740, SR720.
Please refer to the document for exact specifications by model.
