SF6761S - CV/CC Controller

This page provides the datasheet information for the SF6761S, a member of the SF6761S- CV/CC Controller family.

Description

SF6761S is a high performance, highly integrated QR (Quasi Resonant Mode) and Primary Side Regulation (PSR) controller for offline small power converter applications.

for high efficiency and low EMI.

Features

  • Easily Meet EPS Level 6.
  • Less than 75mW Standby Power.
  • Proprietary super-QR/PSRTM (Quasi- Resonant & Primary Side Regulation) Control for High Efficiency and Low EMI.
  • ±5% CC and CV Precision.
  • Proprietary Cable Drop Compensation.
  • Smart Output Short Protection.
  • Cycle-by-Cycle Current Limiting.
  • Built-in Leading Edge Blanking (LEB).
  • Pin Floating Protection.
  • Built-in Soft Start.
  • Output Over Voltage Protection.
  • VDD OVP & Clamp.
  • VDD Unde.

📥 Download Datasheet

Datasheet preview – SF6761S

Datasheet Details

Part number SF6761S
Manufacturer SiFirst
File Size 142.35 KB
Description CV/CC Controller
Datasheet download datasheet SF6761S Datasheet
Additional preview pages of the SF6761S datasheet.

📁 Similar Datasheet

  • SF67 - 6.0 AMP SUPER FAST RECTIFIERS (Formosa MS)
  • SF67 - (SF61 - SF68) SUPERFAST RECOVERY RECTIFIERS (HY ELECTRONIC)
  • SF67 - (SF61 - SF68) Super Fast Rectifiers (Taiwan Semiconductor)
  • SF67 - 6.0 AMP SUPER FAST RECTIFIERS (GW)
  • SF67 - Super Fast Plastic Rectifiers (LRC)
  • SF67 - Super Fast Rectifiers (LGE)
  • SF67 - SUPER FAST RECTIFIER DIODES (EIC)
  • SF67G - Glass Passivated Super Fast Rectifiers (Taiwan Semiconductor)
  • SF67G - Super Fast Recovery Rectifier (Yangzhou Yangjie)
  • SF6 - SURFACE MOUNT FAST RECOVERY RECTIFIER (Rectron)
Other Datasheets by SiFirst

Full PDF Text Transcription

Click to expand full text

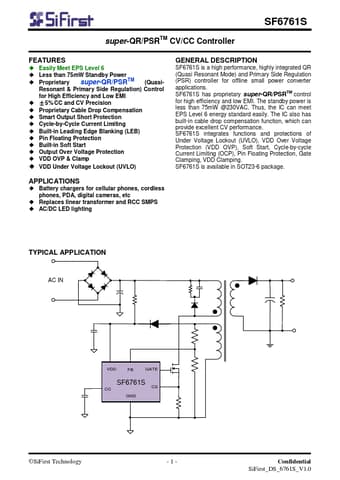

super-QR/PSRTM CV/CC Controller SF6761S FEATURES ◆ Easily Meet EPS Level 6 ◆ Less than 75mW Standby Power ◆ Proprietary super-QR/PSRTM (Quasi- Resonant & Primary Side Regulation) Control for High Efficiency and Low EMI ◆ ±5% CC and CV Precision ◆ Proprietary Cable Drop Compensation ◆ Smart Output Short Protection ◆ Cycle-by-Cycle Current Limiting ◆ Built-in Leading Edge Blanking (LEB) ◆ Pin Floating Protection ◆ Built-in Soft Start ◆ Output Over Voltage Protection ◆ VDD OVP & Clamp ◆ VDD Under Voltage Lockout (UVLO) APPLICATIONS ◆ Battery chargers for cellular phones, cordless phones, PDA, digital cameras, etc ◆ Replaces linear transformer and RCC SMPS ◆ AC/DC LED lighting GENERAL DESCRIPTION SF6761S is a high performance, highly integrated QR (Quasi Resonant Mode) and Primary Side Regu
