DM13G

16-bit Constant Current LED Driver

DM13G Features

* z Constant-current outputs: 5mA to 90mA adjustable by one external resistor z Maximum output voltage: 17V z Maximum clock frequency: 30MHz z 7-bit linear global brightness control z Built-in LED open/short detection: Real-time detection or Smart detection z Outputs short to GND detection: Smar

DM13G General Description

DM13G is a constant-current sink driver specifically designed for LED display applications. The device incorporates shift registers, data latches, and constant current circuitry on the silicon CMOS chip. The maximum output current value of all 16 channels is adjustable by a single external resistor..

DM13G Datasheet (541.30 KB)

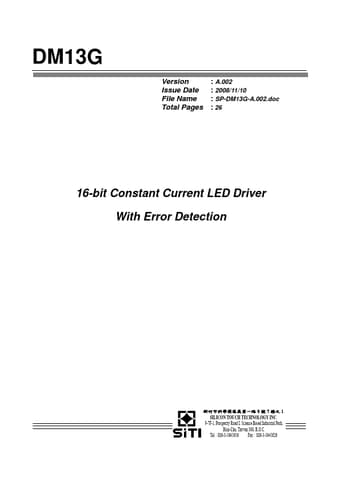

Preview of DM13G PDF

Datasheet Details

Part number:

DM13G

Manufacturer:

SiTi

File Size:

541.30 KB

Description:

16-bit constant current led driver.
DM13G Version Issue Date File Name Total Pages : A.002 : 2008/11/10 : SP-DM13G-A.002.doc : 26 16-bit Constant Current LED Driver With Error Detecti.
