SiT5347 - Precision Super-TCXO

SiTime

📥 Download Datasheet

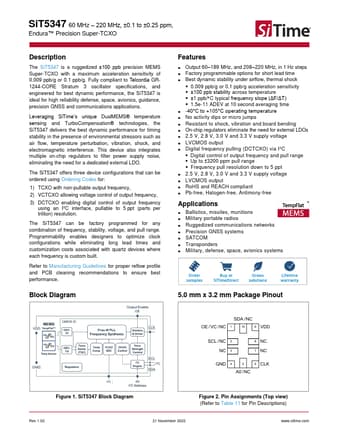

SiT5347 Datasheet Preview — Preview of SiT5347 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SiT5347
Manufacturer: SiTime
File Size: 1.93 MB
Datasheet: SiT5347-SiTime.pdf
Description: Precision Super-TCXO

SiT5347 Product details

Description

The SiT5347 is a ruggedized ±100 ppb precision MEMS Super-TCXO with a maximum acceleration sensitivity of 0.009 ppb/g or 0.1 ppb/g.

Features

Output 60.
189 MHz, and 208.
220 MHz, in 1 Hz steps.
Factory programmable options for short lead time.
Best dynamic stability under airflow, thermal shock ▪ 0.009 ppb/g or 0.1 ppb/g acceleration sensitivity ▪ ±100 ppb stability across temperature ▪ ±1 ppb/C typical frequency slope (ΔF/ΔT) ▪ 1.5e-11 ADEV at 10 second averaging time.
-40°C to +105°C operating temperature.
No activity dips or micro jumps.
Resistant to shock, vibration and board bending.
