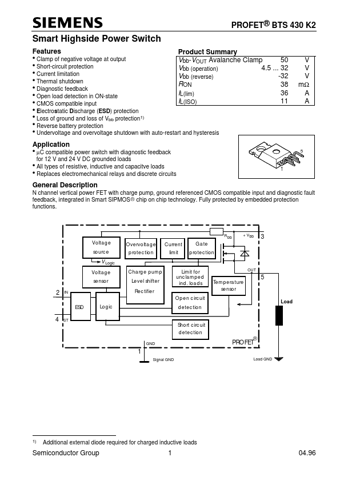

BTS430K2 Smart Highside Power Switch

N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic fault feedback, integrated in Smart SIPMOS® chip on chip technology. Fully protected by embedded protection functions. R bb + V bb 3 Voltage source Overvoltage protection Current limit Gate p.

PROFET® BTS 430 K2 Smart Highside Power Switch Clamp of negative voltage at output Vbb-VOUT Avalanche Short-circuit protection Vbb (operation) Current limitation Vbb (reverse) Thermal shutdown RON Diagnostic feedback IL(lim) Open load detection in ON-state IL(ISO) CMOS compatible input Electrostatic Discharge (ESD) protection Loss of ground and loss of Vbb protection1) Reverse battery protection .

BTS430K2 Features

* Product Summary Clamp 50 4.5 32 -32 38 36 11 V V V mΩ A A Application

* µC compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads

* All types of resistive, inductive and capacitve loads

* Replaces electromechanical relays and discrete circu
