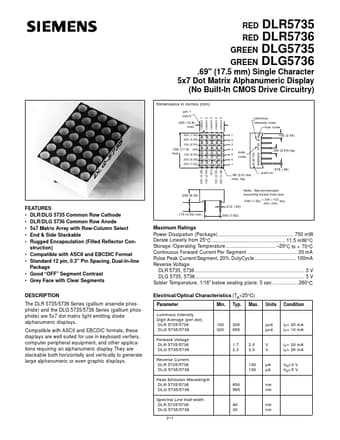

DLR5736 - Single Character 5x7 Dot Matrix Alphanumeric Display

📥 Download Datasheet

General Description

The DLR 5735/5736 Series (gallium arsenide phosphide) and the DLG 5735/5736 Series (gallium phosphide) are 5x7 dot matrix light emitting diode alphanumeric displays.

Compatible with ASCII and EBCDIC formats, these displays are well suited for use in keyboard verfiers, computer peripheral equipment, and other applications requiring an alphanumeric display They are stackable both horizontally and vertically to generate large alphanumeric or even graphic displays.

.012 (.30) .170 (4.32) min.

Overview

DLR5735 RED DLR5736 GREEN DLG5735 GREEN DLG5736 RED .69" (17.5 mm) Single Character 5x7 Dot Matrix Alphanumeric Display (No Built-In CMOS Drive Circuitry) Dimensions in inches (mm) column 1 column 2 column 3 column 4 column 5 pin 1 notch .505 (12.8) max.

.300 (7.62) .200 (5.08) .100 (2.54) luminous intensity code hue code row 2 row 3 row 4 row 5 row 6 row 7 .200 (5.08) .100 (2.54) .100 (2.54) .200 (5.08) .000 DLX573X .705 (17.9) .000 max.

.100 (2.54) .200 (5.08) .300 (7.62) SIEMENS YYXX Z# row 1 .100 (2.54) date code .100 (2.54) typ.

Key Features

  • DLR/DLG 5735 Common Row Cathode.
  • DLR/DLG 5736 Common Row Anode.
  • 5x7 Matrix Array with Row-Column Select.
  • End & Side Stackable.
  • Rugged Encapsulation (Filled Reflector Construction).
  • Compatible with ASCII and EBCDIC Format.
  • Standard 12 pin, 0.3" Pin Spacing, Dual-ln-line Package.
  • Good “OFF” Segment Contrast.
  • Grey Face with Clear Segments.
