IL4117 - ZERO VOLTAGE CROSSING TRIAC DRIVER OPTOCOUPLER

Description

The IL411x consists of an AlGaAs IRLED optically coupled to a photosensitive zero crossing TRIAC network.

The TRIAC consists of two inverse parallel connected monolithic SCRs.

Features

  • High Input Sensltlvity: IFT=1.3 mA, PF=1.0; IFT=3.5 mA, Typlcal PF < 1.0.
  • Zero Voltage Crosslng.
  • 600/700/800 V Blocklng Voltage.
  • 300 mA On-State Current.
  • High Statlc dv/dt 10,000 V/µsec. , typical.
  • Inverse Parallel SCRs Provide Commutatlng dv/dt >10 KV/msec.
  • Very Low Leakage.

📥 Download Datasheet

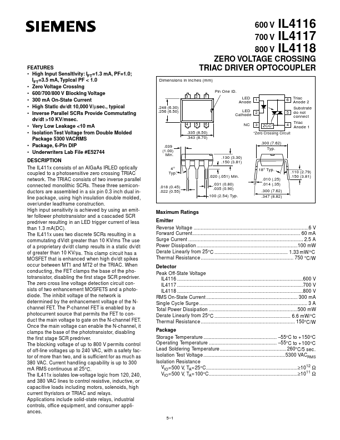

Datasheet preview – IL4117

📁 Similar Datasheet

  • IL410 - Optocoupler (Vishay)
  • IL41050 - Isolated High-Speed CAN Transceiver (NVE)
  • IL4108 - Optocoupler (Vishay)
  • IL4145A - Low Power Ground Fault Interrupter (IK Semiconductor)
  • IL420 - Optocoupler (Vishay Siliconix)
  • IL4208 - Optocoupler (Vishay Siliconix)
  • IL4270 - POWER VOLTAGE REGULATOR (Integral)
  • IL440 - Optocoupler (Vishay Siliconix)
  • IL44608N - External Components Reliable and Flexible SMPS Controller (IK Semicon)
  • IL4558 - Dual Operational Amplifiers (ETC)
Other Datasheets by Siemens Semiconductor Group
  • IL4116 - ZERO VOLTAGE CROSSING TRIAC DRIVER OPTOCOUPLER
  • IL4118 - ZERO VOLTAGE CROSSING TRIAC DRIVER OPTOCOUPLER
  • IL410 - RIAC DRIVER OPTOCOUPLER
  • IL4108 - TRIAC DRIVER OPTOCOUPLER
  • IL400 - PHOTO SCR OPTOCOUPLER
  • IL420 - 600 V TRIAC DRIVER OPTOCOUPLER
  • IL4208 - 800 V TRIAC DRIVER OPTOCOUPLER
  • IL4216 - TRIAC DRIVER OPTOCOUPLER

Full PDF Text Transcription

Click to expand full text
IL4116 700 V IL4117 800 V IL4118 600 V FEATURES • High Input Sensltlvity: IFT=1.3 mA, PF=1.0; IFT=3.5 mA, Typlcal PF < 1.0 • Zero Voltage Crosslng • 600/700/800 V Blocklng Voltage • 300 mA On-State Current • High Statlc dv/dt 10,000 V/µsec., typical • Inverse Parallel SCRs Provide Commutatlng dv/dt >10 KV/msec. • Very Low Leakage <10 mA • Isolation Test Voltage from Double Molded Package 5300 VACRMS • Package, 6-Pln DIP • Underwriters Lab File #E52744 DESCRIPTION The IL411x consists of an AlGaAs IRLED optically coupled to a photosensitive zero crossing TRIAC network. The TRIAC consists of two inverse parallel connected monolithic SCRs. These three semiconductors are assembled in a six pin 0.3 inch dual inline package, using high insulation double molded, over/under leadframe construction.
