IL440 - TRIAC PREDRIVER NON-ZERO CROSSING OPTOCOUPLER

Description

The IL440 consists of a GaAs infrared emitter optically coupled to a silicon planar triac chip with a non-zero crossing network.

The two semiconductors are assembled in a 6 pin dual-in-line plastic package.

Features

600 V Blocking Voltage.
7 mA Maximum Trigger Current.
Isolation Voltage, 3750 VAC, t=1 sec.
Isolation Materials per UL94.

Datasheet Details

Part number	IL440
Manufacturer	Siemens Semiconductor Group (now Infineon)
File Size	23.57 KB
Description	TRIAC PREDRIVER NON-ZERO CROSSING OPTOCOUPLER
Datasheet	IL440 Datasheet

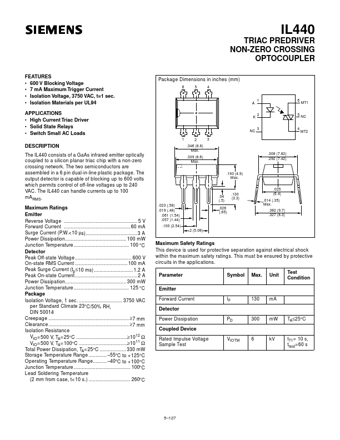

Additional preview pages of the IL440 datasheet.

📁 Similar Datasheet

IL440 - Optocoupler (Vishay Siliconix)

IL44608N - External Components Reliable and Flexible SMPS Controller (IK Semicon)

IL410 - Optocoupler (Vishay)

IL41050 - Isolated High-Speed CAN Transceiver (NVE)

IL4108 - Optocoupler (Vishay)

IL4145A - Low Power Ground Fault Interrupter (IK Semiconductor)

IL420 - Optocoupler (Vishay Siliconix)

IL4208 - Optocoupler (Vishay Siliconix)

IL4270 - POWER VOLTAGE REGULATOR (Integral)

IL4558 - Dual Operational Amplifiers (ETC)

Full PDF Text Transcription

Click to expand full text

IL440 TRIAC PREDRIVER NON-ZERO CROSSING OPTOCOUPLER FEATURES • 600 V Blocking Voltage • 7 mA Maximum Trigger Current • Isolation Voltage, 3750 VAC, t=1 sec. • Isolation Materials per UL94 APPLICATIONS • High Current Triac Driver • Solid State Relays • Switch Small AC Loads 1 2 .346 (8.8) Max. .339 (8.6) Max. .193 (4.9) Max. .025 (6.4) .014 (.35) Max. .382 (9.7) .327 (8.3) .308 (7.82) .292 (7.42) 3 Package Dimensions in inches (mm) 6 5 4 A 1 6 MT1 K 2 5 NC 4 NC 3 MT2 DESCRIPTION The IL440 consists of a GaAs infrared emitter optically coupled to a silicon planar triac chip with a non-zero crossing network. The two semiconductors are assembled in a 6 pin dual-in-line plastic package.
