ILQ66 - PHOTODARLINGTON OPTOCOUPLER

Siemens Semiconductor Group

The ILQ66 by Siemens Semiconductor Group is a PHOTODARLINGTON OPTOCOUPLER. Below is the official datasheet preview.

Datasheet Details

Part number	ILQ66
Manufacturer	Siemens Semiconductor Group
File Size	74.21 KB
Description	PHOTODARLINGTON OPTOCOUPLER
Datasheet	ILQ66_SiemensSemiconductorGroup.pdf

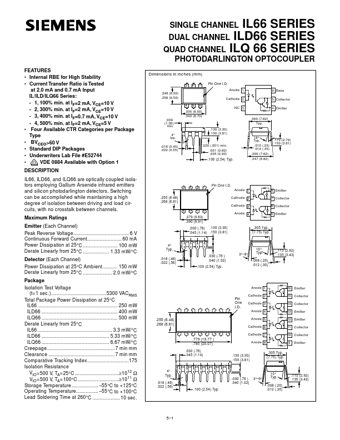

Additional preview pages of the ILQ66 datasheet.

IL66, ILD66, and ILQ66 are optically coupled isolators employing Gallium Arsenide infrared emitters and silicon photodarlington detectors.

Internal RBE for High Stability.
Current Transfer Ratio is Tested at 2.0 mA and 0.7 mA Input IL/ILD/ILQ66 Series: - 1, 100% min. at IF=2 mA, VCE=10 V - 2, 300% min. at IF=2 mA, VCE=10 V - 3, 400% min. at IF=0.7 mA, VCE=10 V - 4, 500% min. at IF=2 mA, VCE=5 V.
Four Available CTR Categories per Package Type.
BVCEO>60 V.
Standard DIP Packages.
Underwriters Lab File #E52744.
V VDE 0884 Available with Option 1 D E Dimensions in inches (.
