Q62702-C1847 Datasheet | Siemens Semiconductor Group

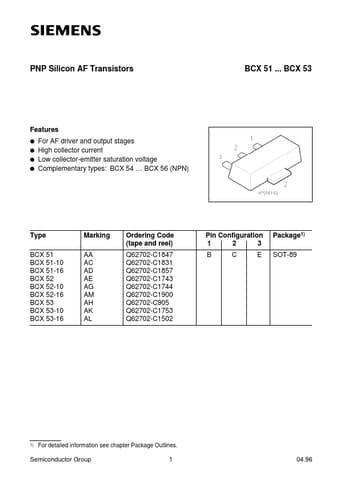

Features For AF driver and output stages q High collector current q Low collector-emitter saturation voltage q plementary types: BCX 54 … BCX 56 (NPN) q Type BCX 51 BCX 51-10 BCX 51-16 BCX 52 BCX 52-10 BCX 52-16 BCX 53 BCX 53-10 BCX 53-16 Marking AA AC AD AE AG AM AH AK AL Ordering Code (tape and reel) Q62702-C1847 Q62702-C1831 Q62702-C1857 Q62702-C1743 Q62702-C1744 Q62702-C1900 Q62702-C905 Q62702-C1753 Q62702-C1502 Pin Configuration 1 2 3 B C E Package1) SOT-89 1) For detailed information see chapter Package Outlines. Semiconductor Group BCX 51 ... BCX 53 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Collector current Peak collector current Base current Peak base current Junction temperature Storage temperature range Thermal Resistance Junction - ambient1) Junction - soldering point Rth JA Rth JS ≤ ≤ Symbol BCX 51 VCE0 VCB0 VEB0 IC ICM IB IBM Tj Tstg 45 45 5 Values BCX 52 60 60 5 1 1.5 100 200 1 150 Unit BCX 53 80 100 5 A m A W ˚C V Total power dissipation, TS = 130 ˚C Ptot - 65 … + 150 75 20 K/W 1) Package mounted on epoxy pcb 40 mm × 40 mm × 1.5 mm/6 cm2 Cu. Semiconductor Group BCX 51 ... BCX 53 Electrical Characteristics at TA = 25 ˚C, unless otherwise specified. Parameter Symbol min. DC characteristics Collector-emitter breakdown voltage IC = 10 m A BCX 51 BCX 52 BCX 53 Collector-base breakdown voltage IC = 100 µA BCX 51 BCX 52 BCX 53 Emitter-base breakdown voltage IE = 10 µA Collector cutoff current VCB = 30 V VCB = 30 V, TA = 150 ˚C Emitter cutoff current VEB = 4 V DC current gain1) IC = 5 m A, VCE = 2 V IC = 150 m A, VCE = 2 V BCX 51, BCX 52, BCX 53 BCX 51-10, BCX 52-10, BCX 53-10 BCX 51-16, BCX 52-16, BCX 53-16 IC = 500 m A, VCE = 2 V Collector-emitter saturation voltage1) IC = 500 m A, IB = 50 m A Base-emitter voltage1) IC = 500 m A, VCE = 2 V AC characteristics Transition frequency IC = 50 m A, VCE = 10 V, f = 20 MHz f T - 125 - MHz V(BR)CE0 45 60 80 V(BR)CB0 45 60 100 V(BR)EB0...
