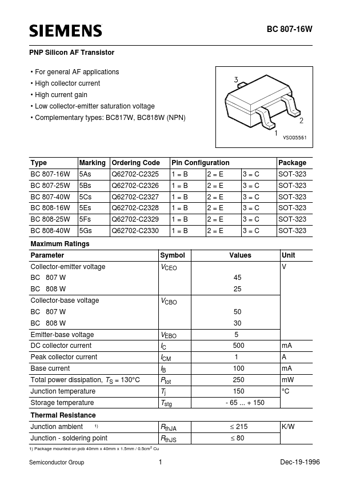

BC 807-16W
PNP Silicon AF Transistor • For general AF applications • High collector current • High current gain • Low collector-emitter saturation voltage • Complementary types: BC817W, BC818W (NPN)
Type BC 807-16W BC 807-25W BC 807-40W BC 808-16W BC 808-25W BC 808-40W
Marking Ordering Code 5As 5Bs 5Cs 5Es 5Fs 5Gs Q62702-C2325 Q62702-C2326 Q62702-C2327 Q62702-C2328 Q62702-C2329 Q62702-C2330
Pin Configuration 1=B 1=B 1=B 1=B 1=B 1=B 2=E 2=E 2=E 2=E 2=E 2=E 3=C 3=C 3=C 3=C 3=C 3=C
Package SOT-323 SOT-323 SOT-323 SOT-323 SOT-323 SOT-323
Maximum Ratings Parameter Collector-emitter voltage BC 807 W BC 808 W Collector-base voltage BC 807 W BC 808 W Emitter-base voltage DC collector current Peak collector current Base current Total power dissipation, TS = 130°C Junction temperature Storage t
