Q62702-D1051 - Silicon Schottky Diodes (Medium barrier diodes for detector and mixer applications Hermetical ceramic package)

Siemens Semiconductor Group (now Infineon)

📥 Download Datasheet

Q62702-D1051 silicon schottky diodes (medium barrier diodes for detector and mixer applications hermetical ceramic package) by Siemens Semiconductor Group (now Infineon) - Datasheet Preview

Datasheet Details

Part number	Q62702-D1051
Manufacturer	Siemens Semiconductor Group (now Infineon)
File Size	47.44 KB
Description	Silicon Schottky Diodes (Medium barrier diodes for detector and mixer applications Hermetical ceramic package)
Datasheet	Q62702-D1051 Datasheet

Other Datasheets by Siemens Semiconductor Group (now Infineon)

Part Number	Description
Q62702-D1056	Silicon Schottky Diodes (Medium barrier diodes for detector and mixer applications Hermetical ceramic package)
Q62702-D1005	Silicon Schottky Diodes (Medium barrier diodes for detector and mixer applications Hermetical ceramic package)
Q62702-D1019	Silicon Schottky Diodes (Medium barrier diodes for detector and mixer applications Hermetical ceramic package)
Q62702-D1026	Silicon Schottky Diodes (Medium barrier diodes for detector and mixer applications Hermetical ceramic package)
Q62702-D1036	Silicon Schottky Diodes (Medium barrier diodes for detector and mixer applications Hermetical ceramic package)
Q62702-D1040	PNP SILICON PLANAR TRANSISTOR
Q62702-D1041	Silicon Schottky Diodes (Medium barrier diodes for detector and mixer applications Hermetical ceramic package)
Q62702-D106	NPN SILICON TRANSISTORS
Q62702-D106-P	NPN SILICON TRANSISTORS
Q62702-D106-V1	NPN SILICON TRANSISTORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

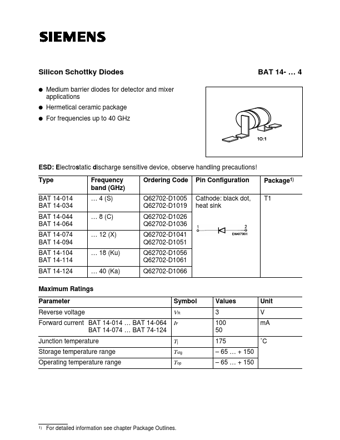

Silicon Schottky Diodes q q q BAT 14- … 4 Medium barrier diodes for detector and mixer applications Hermetical ceramic package For frequencies up to 40 GHz ESD: Electrostatic discharge sensitive device, observe handling precautions! Type BAT 14-014 BAT 14-034 BAT 14-044 BAT 14-064 BAT 14-074 BAT 14-094 BAT 14-104 BAT 14-114 BAT 14-124 Frequency band (GHz) … 4 (S) … 8 (C) … 12 (X) … 18 (Ku) … 40 (Ka) Ordering Code Q62702-D1005 Q62702-D1019 Q62702-D1026 Q62702-D1036 Q62702-D1041 Q62702-D1051 Q62702-D1056 Q62702-D1061 Q62702-D1066 Pin Configuration Cathode: black dot, heat sink Package1) T1 Maximum Ratings Parameter Reverse voltage Forward current BAT 14-014 … BAT 14-064 BAT 14-074 … BAT 74-124 Junction temperature Storage temperature range Operating temperature range Symbol VR IF Tj Tstg
