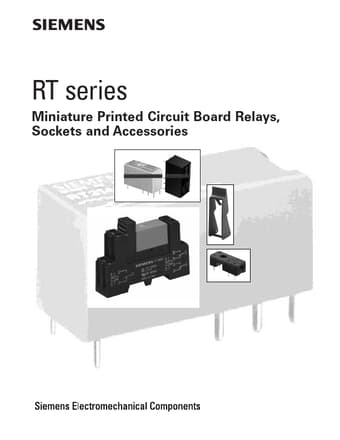

RT134012, RT1 - Miniature Printed Circuit Board Relays / Sockets and Accessories

Siemens Semiconductor Group

Datasheet Details

Part number	RT134012, RT1
Manufacturer	Siemens Semiconductor Group
File Size	193.38 KB
Description	Miniature Printed Circuit Board Relays / Sockets and Accessories
Datasheet	RT1-14012.pdf
Note	This datasheet PDF includes multiple part numbers: RT134012, RT1. Please refer to the document for exact specifications by model.

SPST through DPDT contact arrangements.
Immersion cleanable and flux tight versions available.
VDE 10mm spacing, 5kV dielectric, coil to contacts.
UL Class F coil insulation system.
Conforms to UL 508, 1873, 353 and 1950.
Low profile; 15.7mm height.
Sensitive coil; 400mW.
Withstand surge voltage of 10,000V. Coil Data @ 25°C Voltage: 5 to 48VDC. Nominal Power @ 25°C: 400mW. Duty Cycle: Continuous. Initial Insulation.
