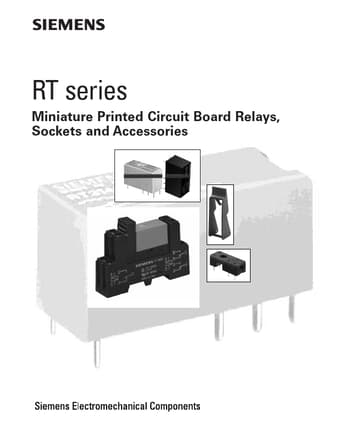

RTD34012 Datasheet Preview — Preview of RTD34012 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: RTD34012
Manufacturer: Siemens Semiconductor Group
File Size: 193.38 KB
Datasheet: RTD34012_SiemensSemiconductorGroup.pdf
Description: Miniature Printed Circuit Board Relays/ Sockets and Accessories

RTD34012 Product details

Features

SPST through DPDT contact arrangements.
Immersion cleanable and flux tight versions available.
VDE 10mm spacing, 5kV dielectric, coil to contacts.
UL Class F coil insulation system.
Conforms to UL 508, 1873, 353 and 1950.
Low profile; 15.7mm height.
Sensitive coil; 400mW.
Withstand surge voltage of 10,000V. Coil Data @ 25°C Voltage: 5 to 48VDC. Nominal Power @ 25°C: 400mW. Duty Cycle: Continuous. Initial Insulation.
