SN7000 SIPMOS Small-Signal Transistor

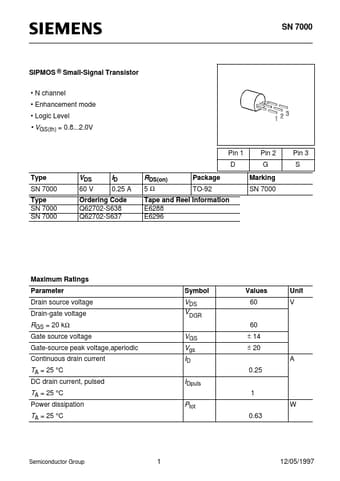

SN 7000 SIPMOS ® Small-Signal Transistor N channel Enhancement mode Logic Level VGS(th) = 0.82.0V Pin 1 D Type SN 7000 Type SN 7000 SN 7000 Pin 2 G Marking SN 7000 Pin 3 S VDS 60 V ID 0.25 A RDS(on) 5Ω Package TO-92 Ordering Code Q62702-S638 Q62702-S637 Tape and Reel Information E6288 E6296 Maximum Ratings Parameter Drain source voltage Drain-gate voltage Symbol Values 60 60 Unit V VDS V DGR RGS = 20 kΩ Gate source voltage Gate-source peak v.
