TLE4202B

2-A DC Motor Driver

TLE4202B Features

* Drives motors up to 2 A Integrated free-wheeling diodes 2.5 A Short-circuit proof to ground Overtemperature protection Low saturation voltages through bootstrap Wide temperature range Suitable for applications in automotive engine

TLE4202B General Description

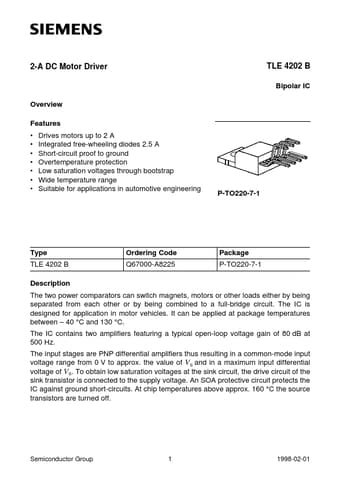

Ordering Code Q67000-A8225 Package P-TO220-7-1 The two power comparators can switch magnets, motors or other loads either by being separated from each other or by being combined to a full-bridge circuit. The IC is designed for application in motor vehicles. It can be applied at package temperatur.

TLE4202B Datasheet (106.75 KB)

Preview of TLE4202B PDF

Datasheet Details

Part number:

TLE4202B

Manufacturer:

Siemens Semiconductor Group

File Size:

106.75 KB

Description:

2-a dc motor driver.
