TLE4905 Datasheet - Siemens Semiconductor Group

Uni- and Bipolar Hall IC Switches

TLE4905 Features

* Temperature compensated magnetic performance Digital output signal For unipolar and alternating magnetic fields Large temperature range Protection against reversed polarity Output protection against electrical disturbances SOT-89 Type w TL

TLE4905 General Description

The circuit includes Hall generator, amplifier and Schmitt-Trigger on one chip. The internal reference provides the supply voltage for the components. A magnetic field perpendicular to the chip surface induces a voltage at the hall probe. This voltage is amplified and switches a Schmitt-trigger with.

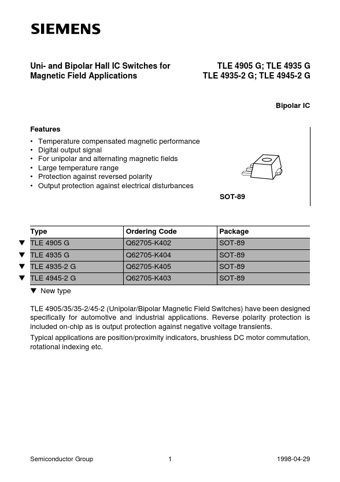

TLE4905 Datasheet (115.42 KB)

TLE4905 Datasheet Preview — Preview of TLE4905 PDF

Datasheet Details

Part number:

TLE4905

Manufacturer:

Siemens Semiconductor Group

File Size:

115.42 KB

Description:

Uni- and bipolar hall ic switches.
