80C517A - SAB80C517A

Product Overview

Siemens Semiconductor

Datasheet Details

Part number	80C517A
Manufacturer	Siemens Semiconductor
File Size	1.42 MB
Description	SAB80C517A
Datasheet	80C517A Datasheet
Additional preview pages of the 80C517A datasheet.

Product details

Description

completed Correct ordering numbers Test condition for VOH, VOH1 corrected tPXIZ name corrected tAVIV, tAZPL values corrected Minimum clock frequence is now 3.5 MHz tQVWH (data setup before WR) corrected and added tLLAX2 corrected Subjects (changes since last revision 08.93) Corrected SFR name S0RELL Below "Termination of HWPD Mode": 4th paragraph with ident corrected Description of tLLIV corrected

Features

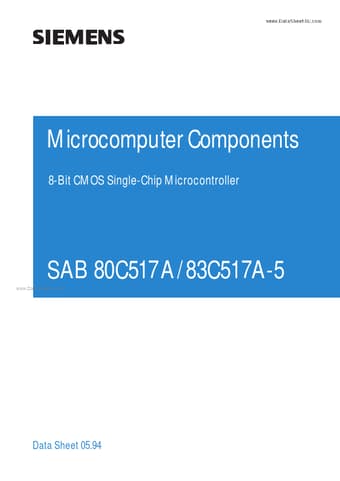

and operating characteristics the SAB 80C517A is expanded in its "fail-safe" characteristics and timer capabilities. The SAB 80C517A is identical with the SAB 83C517A-5 except that it lacks the on-chip program memory. The SAB 80C517A/83C517A-5 is supplied in a 84-pin plastic leaded chip carrier package (P-LCC-84) and in a 100-pin plastic quad flat package (P-MQFP-100-2). Semiconductor Group 1 1994-05-01 SAB 80C517A/83C517A-5 SAB 80C517A/83C517A-5 Revision History 05.94 Previous Releases Page.
