HDSP2114S (HDSP2110S - HDSP2115S) 8-Character 5x7 Dot Matrix Parallel Input Alphanumeric Intelligent Display

The HDSP2110S (Red), HDSP2111S (Yellow), HDSP2112S (High Efficiency Red), HDSP2113S (Green), HDSP2114S (High Efficiency Green), and HDSP2115S (Soft Orange) are eight digit, 5x7 dot matrix, alphanumeric Intelligent Display devices. The 0.20 inch high digits are packaged in a rugged, high quality, optic.
www.DataSheet4U.com RED YELLOW HIGH EFFICIENCY RED GREEN HIGH EFFICIENCY GREEN SOFT ORANGE 0.200" 8-Character 5x7 Dot Matrix Parallel Input Alphanumeric Intelligent Display® Devices Dimensions in inches (mm) 1.680 (42.67) max. 0.210 (5.34) 0.105 (2.67) 0.771 (19.58) 0.386 (9.8) Pin 1 Indicator Part Number EIA Date Code HDSP211X SIEMENS WW 0.189 (4.79) 0.018 typ. (.46) Z 1 0.160±.020 (4.06±.50) 0.012 (0.30) typ. Intensity Code Color Bin (For Yellow Only) 0.209 (5.31) 0.086 (2.19) HDSP2110S HDS.

HDSP2114S Features

* Eight 0.200" Dot Matrix Characters in Red, Yellow, High Efficiency Red, Green, High Efficiency Green, or Soft Orange

* Built-in 128 Character ROM, Mask Programmable for Custom Fonts

* Readable from 8 Feet (2.5 meters)

* Built-in Decoders, Multiplexers and Drivers

HDSP2110S_SiemensSemiconductor.pdf

This datasheet PDF includes multiple part numbers: HDSP2114S, HDSP2110S. Please refer to the document for exact specifications by model.

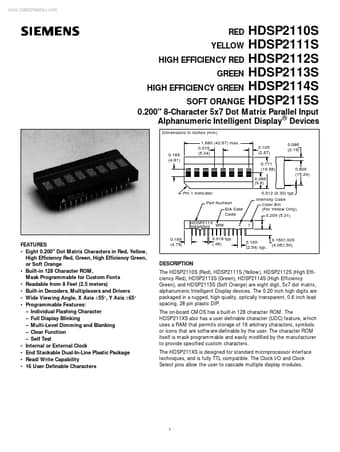

HDSP2114S Datasheet Preview Page 2 HDSP2114S Datasheet Preview Page 3
