SPL2Yxx - Laser Diode

Siemens Semiconductor

📥 Download Datasheet

SPL2Yxx Datasheet Preview — Preview of SPL2Yxx PDF

datasheet Preview Page 2

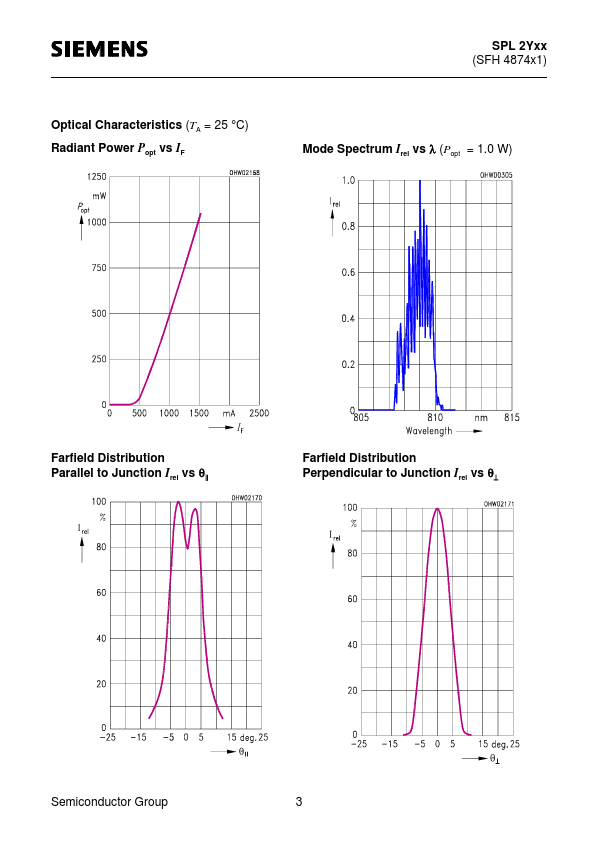

datasheet Preview Page 3

Datasheet Details

Part number	SPL2Yxx
Manufacturer	Siemens Semiconductor
File Size	115.65 KB
Description	Laser Diode
Datasheet	SPL2Yxx_SiemensSemiconductor.pdf

SPL2Yxx Product details

Features

Efficient radiation source for pulsed and cw-operation.
Reliable InGa(Al)As strained layer quantum-well material.
Small TO-220 package with efficient thermal coupling.
Includes thermistor to control temperature/wavelength.
Single emitting area 200 µm × 1 µm.
Cylindrical correction for a near circular farfield pattern.
