3TF48 Datasheet (Siemens)

3TF48, AC contactor

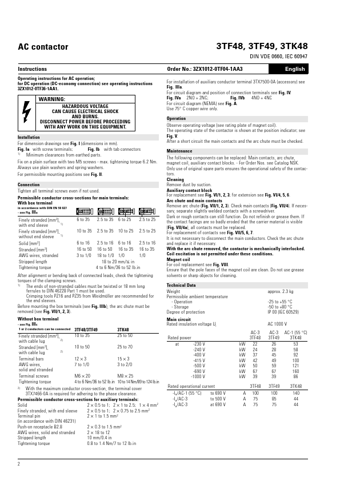

AC contactor 3TF48, 3TF49, 3TK48 DIN VDE 0660, IEC 60947 Instructions Operating instructions for AC operation; for DC operation (DC-economy connection) see operating instructions 3ZX1012-0TF36-1AA1.

WARNING: HAZARDOUS VOLTAGE CAN CAUSE ELECTRICAL SHOCK AND BURNS.

DISCONNECT POWER BEFORE PROCEEDING WITH ANY WORK ON THIS EQUIPMENT.

Installation For dimension drawings see Fig.

I (dimensions in mm).

Fig.

Ia with screw terminals; Fig.

Ib with tab connectors 1) Minimum clearances from earthed
