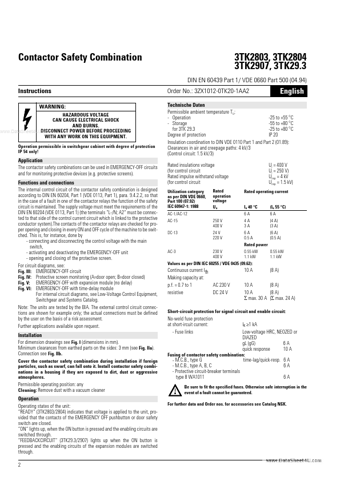

Contactor Safety Combination
Instructions
3TK2803, 3TK2804 3TK2907, 3TK29.3
DIN EN 60439 Part 1/ VDE 0660 Part 500 (04.94)
Order No.: 3ZX1012-0TK20-1AA2
English
WARNING:
HAZARDOUS VOLTAGE CAN CAUSE ELECTRICAL SHOCK
AND BURNS. www.DataSheet4U.cDoImSCONNECT POWER BEFORE PROCEEDING
WITH ANY WORK ON THIS EQUIPMENT.
Operation permissible in switchgear cabinet with degree of protection IP 54 only!
Application
The contactor safety combinations can be used in EMERGENCY-OFF circuits and for monitoring protective devices (e.g. protective screens).
Functions and connections
The internal control circuit of the contactor safety combination is designed according to DIN EN 60204, Part 1 (VDE 0113, Part 1), para. 9.4.2.
