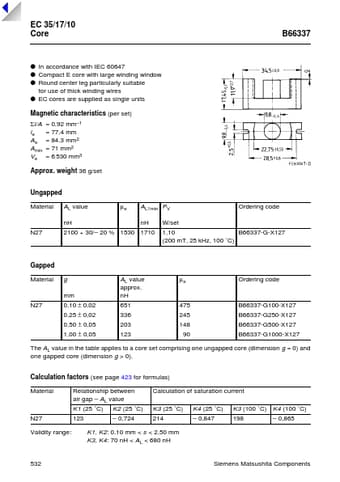

EC 35/17/10 Core B66337 q In accordance with IEC 60647 q Compact E core with large winding window q Round center leg particularly suitable for use of thick winding wires q EC cores are supplied as single units Magnetic characteristics (per set) Σl/A le Ae Amin Ve = 0,92 mm 1 = 77,4 mm = 84,3 mm2 = 71 mm2 = 6 530 mm3 Approx. weight 36 g/set Ungapped Material AL value µe AL1min PV Ordering code N27 www.DataSheet4U.com nH nH 2100 + 30/ 20 % 1530 1710 W/set 1,10 B66337-G-X.
