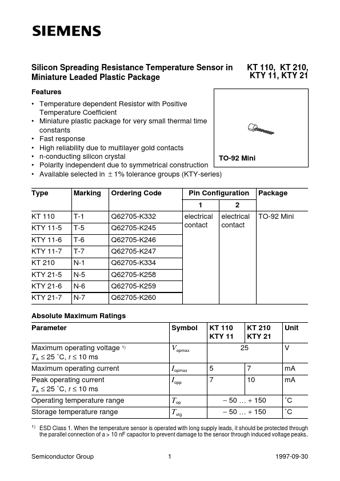

Silicon Spreading Resistance Temperature Sensor in KT 110, KT 210,
Miniature Leaded Plastic Package
KTY 11, KTY 21
Features
• Temperature dependent Resistor with Positive
Temperature Coefficient
• Miniature plastic package for very small thermal time
constants
• Fast response
• High reliability due to multilayer gold contacts
• n-conducting silicon crystal
TO-92 Mini
• Polarity independent due to symmetrical construction
• Available selected in ± 1% tolerance groups (KTY-series)
Type
Marking Ordering Code
KT 110 KTY 11-5 KTY 11-6 KTY 11-7 KT 210 KTY 21-5 KTY 21-6 KTY 21-7
T-1 T-5 T-6 T-7 N-1 N-5 N-6 N-7
Q62705-K332 Q62705-K245 Q62705-K246 Q62705-K247 Q62705-K334 Q62705-K258 Q62705-K259 Q62705-K260
Pin Configuration
12
electrical electrical contact contact
Package TO-92
