LH1540, LH1504 Datasheet - Siemens

LH1540 High Voltage Optically Coupled Solid

Siemens Solid State Relays (SSRs) are miniature, optically-coupled relays with high-voltage MOSFET outputs. The relays are capable of switching ac or dc loads from as little as nanovolts to hundreds of volts. Likewise, the relays can switch currents in the range of nanoamps to hundreds of milliamps..

LH1540 Features

* 3750 Vrms or 5300 Vrms I/O isolation Current-limit protection built-in Linear ac/dc operation High-reliability monolithic receptor Extremely low leakage current (pA) High contact off-impedance (GW) Low power consumption (1 mW

* 12 mW) Very low switch offset (typically 0.1 mV) Logic compatible

LH1504_Siemens.pdf

This datasheet PDF includes multiple part numbers: LH1540, LH1504. Please refer to the document for exact specifications by model.

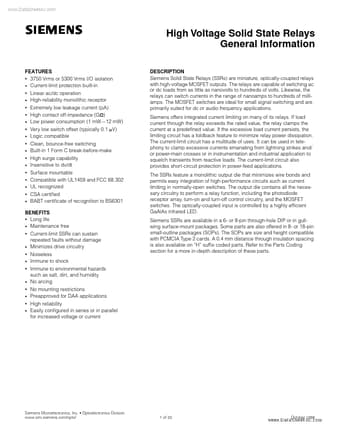

LH1540 Datasheet Preview Page 2 LH1540 Datasheet Preview Page 3

Datasheet Details

Part number:

LH1540, LH1504

Manufacturer:

Siemens

File Size:

210.15 KB

Description:

High voltage optically coupled solid.

Note:

This datasheet PDF includes multiple part numbers: LH1540, LH1504.
Please refer to the document for exact specifications by model.
