SLE24C164 Datasheet - Siemens

16 Kbit (2048 x 8 bit) Serial CMOS-EEPROM

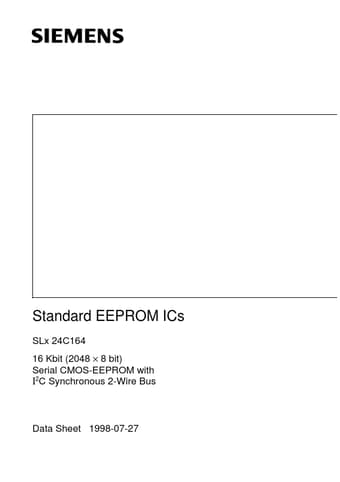

Standard EEPROM ICs SLx 24C164 16 Kbit (2048 × 8 bit) Serial CMOS-EEPROM with I2C Synchronous 2-Wire Bus Data Sheet 1998-07-27 http://www.Datasheet4U.com/ SLx 24C164 Revision History: Previous Version: Page Page (in previous (in current Version) Version) 3 5 11, 12 15 19 20 20 20 I2C Bus Current Version: 1998-07-27 06.97 Subjects (major changes since last revision) 3 5 11, 12 15 19 20 20 20 Text was changed to “Typical programming time 5 ms for up to 16 bytes”. WP = VCC protects the upper .

16 Kbit (2048 x 8 bit) Serial CMOS-EEPROM

SLE24C164 Features

* Data EEPROM internally organized as 2048 bytes and 128 pages × 16 bytes

* Low power CMOS

* VCC = 2.7 to 5.5 V operation

* Two wire serial interface bus, I2C-Bus compatible

* Three chip select pins to address 8 devices

* Filtered inputs for noise supp

SLE24C164 General Description

Serial Clock (SCL) The SCL input is used to clock data into the device on the rising edge and to clock data out of the device on the falling edge. Serial Data (SDA) SDA is a bidirectional pin used to transfer addresses, data or control information into the device or to transfer data out of the devic.
