TBA229-5

Dual Sound FM IF Amplifier

TBA229-5 Features

* High AM suppression over a very wide input voltage range High sensitivity Very high symmetry P-DIP-16 The component contains two separate limiter amplifiers with FM demodulators and separate AF outputs. Type TBA 229-5 Ordering Code Q67000-A5133 Package P-DIP-16 Circuit Description The componen

TBA229-5 General Description

The component contains two separate FM sound IF sections for television stereo applications or for multistandard receivers. Each FM section consists of an eight-stage symmetrical limiter amplifier followed by a coincidence demodulator and an AF pre-amplifier with a low-ohmic output. The component fe.

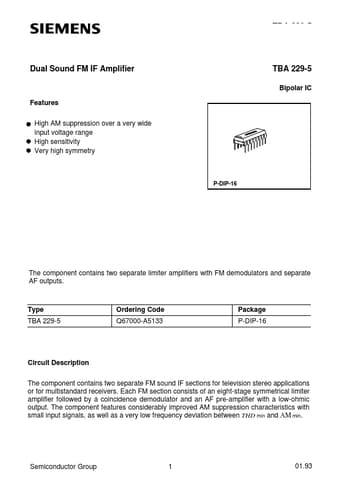

TBA229-5 Datasheet (599.59 KB)

Preview of TBA229-5 PDF

Datasheet Details

Part number:

TBA229-5

Manufacturer:

Siemens

File Size:

599.59 KB

Description:

Dual sound fm if amplifier.
