V23042-A2001-B101 - High Dielectric Polarized PC Board Relay

Download the V23042-A2001-B101 datasheet PDF. This datasheet also covers the V23042-1 variant, as both devices belong to the same high dielectric polarized pc board relay family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • 5A switching capacity. Meets FCC Part 68 isolation. Temperature compensated over operating range. No magnetic interference between adjacent relays. 2 Form C contact arrangement. Standard 0.1” x 0.3” grid spacing in a DIP configuration. Standard or sensitive DC coils through 48 volts. Well suited for audio communications circuits, logic and process control, vending machines and office automation.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (V23042-1_Siemens.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
V23047 Force Guided Relay TE
V23049-B1007-A131 Relays Tyco
V23003 Signal Relays TE
V23003 Cradle Relay Tyco
V23005 Cradle Relay Tyco

Other Datasheets by Siemens Semiconductor Group (now Infineon)

Part Number Description
V23042-A2001-B101 Small relay
V23042-A2001-B201 Small relay
V23042-A2003-B101 Small relay
V23042-A2003-B101 High Dielectric Polarized PC Board Relay
V23042-A2003-B201 Small relay

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

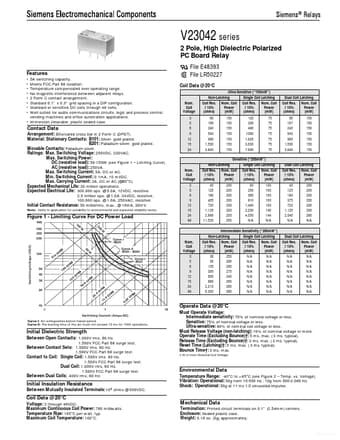

V23042 series 2 Pole, High Dielectric Polarized PC Board Relay Features • • • • • • • • 5A switching capacity. Meets FCC Part 68 isolation. Temperature compensated over operating range. No magnetic interference between adjacent relays. 2 Form C contact arrangement. Standard 0.1” x 0.3” grid spacing in a DIP configuration. Standard or sensitive DC coils through 48 volts. Well suited for audio communications circuits, logic and process control, vending machines and office automation applications. • Immersion cleanable, plastic sealed case. File E48393 File LR50227 Coil Data @ 20°C Ultra-Sensitive (“150mW”) Non-Latching Single Coil Latching Coil Res. Nom. Coil Coil Res. Nom.
