L24C64, L24C32, (L24C32 / L24C64) Two Wire Serial EEPROM

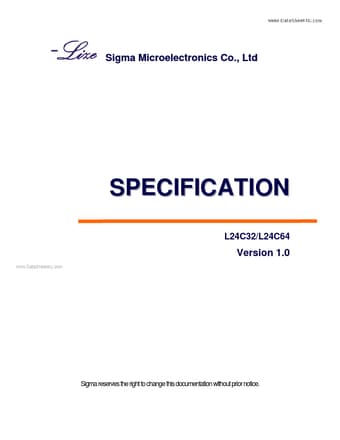

Sigma Microelectronics Co., Ltd SPECIFICATION L24C32/L24C64 Version 1.0 www.DataSheet4U.com Sigma reserves the right to change this documentation w.
The L24C32/L24C64 provides 32,768/65,536 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 4096/8192 words.

datasheet Preview Page 1 from Datasheet4u.com

L24C32_Sigma.pdf

L24C64 Datasheet Preview — This datasheet PDF includes multiple part numbers: L24C64, L24C32. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

L24C64, L24C32

Manufacturer:

Sigma

File Size:

644.11 KB

Description:

(L24C32 / L24C64) Two Wire Serial EEPROM

Note:

This datasheet PDF includes multiple part numbers: L24C64, L24C32.
Please refer to the document for exact specifications by model.

Features

* L24C32/L24C64 32K bits (4096 X 8) / 64K bits (8192 X 8) Features Wide Voltage Operation - VCC = 1.8V to 5.5V Operating Ambient Temperature: -40 to +85 Internally Organized: - L24C32, 4096 X 8 (32K bits) - L24C64, 8192 X 8 (64K bits) Two-wire Serial Interface Schmitt Trigger, Filtered Inputs for No

Applications

* where low-power and low-voltage operations are essential. The L24C32/L24C64 is available in space-saving 8-lead PDIP, 8-lead SOP, and 8-lead TSSOP packages and is accessed via a two-wire serial interface. www. DataSheet4U. com Pin Configuration Page 2 of 14 L24C32/L24C64 32K bits (4096 X 8) / 64K b
