PC-12-100 - Printed Circuit Mount Power Transformers

Download the PC-12-100 datasheet PDF. This datasheet also covers the PC-10-90 variant, as both devices belong to the same printed circuit mount power transformers family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PC-10-90-SignalTransformer.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PC-12-100
Manufacturer Signal Transformer
File Size 286.81 KB
Description Printed Circuit Mount Power Transformers
Datasheet download datasheet PC-12-100 Datasheet

Full PDF Text Transcription for PC-12-100 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for PC-12-100. For precise diagrams, and layout, please refer to the original PDF.

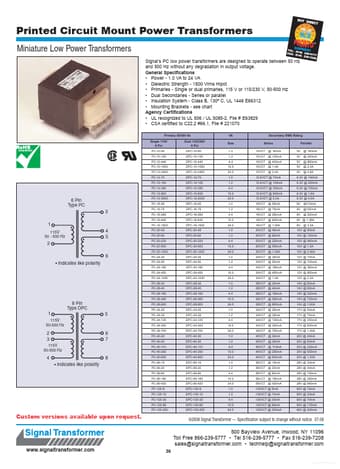

Printed Circuit Mount Power Transformers Miniature Low Power Transformers Signal’s PC low power transformers are designed to operate between 50 Hz and 500 Hz without any ...

View more extracted text
sformers are designed to operate between 50 Hz and 500 Hz without any degradation in output voltage. General Specifications • Power - 1.0 VA to 24 VA • Dielectric Strength - 1500 Vrms Hipot • Primaries - Single or dual primaries, 115 V or 115/230 V, 50-500 Hz • Dual Secondaries - Series or parallel • Insulation System - Class B, 130º C, UL 1446 E66312 • Mounting Brackets - see chart Agency Certifications • UL recognized to UL 506 / UL 5085-2, File # E63829 • CSA certified to C22.2 #66.
