74LS373 - Latches/Flip-Flops

Datasheet Summary

Description

745 74LS All lnputs 1Sul 1LSul All Outputs 10Sul 30LSul NOTE: Where a 74S unit lead (Sui) is 50µA 11H and -2.0mA 11L, and a 74LS unit lead (LSul) is 20µA 11H and - 0.4mA l1L PIN CONFIGURATION LOGIC SYMBOL LOGIC SYMBOL (IEEE/EC) '373 ' c5( Go ' Oo '

,.

Features

  • 8-bit transparent latch - '373.
  • 8-bit positive, edge-triggered register- '374.
  • 3-State output buffers.
  • Common 3-State Output Enable TYPE 74LS373 74S373 74LS374.

📥 Download Datasheet

Datasheet preview – 74LS373

Datasheet Details

Part number 74LS373
Manufacturer Signetics
File Size 2.75 MB
Description Latches/Flip-Flops
Datasheet download datasheet 74LS373 Datasheet
Additional preview pages of the 74LS373 datasheet.

📁 Similar Datasheet

  • 74LS373 - 3-STATE Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops (Fairchild Semiconductor)
  • 74LS373 - OCTAL D-TYPE TRANSPARENT LATCHES AND EDGE-TRIGGERED FLIP-FLOPS (Texas Instruments)
  • 74LS373 - Octal D-type Transparent Latches (Hitachi Semiconductor)
  • 74LS373 - Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops (National Semiconductor)
  • 74LS373 - OCTAL TRANSPARENT LATCH (Motorola)
  • 74LS373 - Octal D-Type Flip-Flop (onsemi)
  • 74LS37 - Quadruple 2-input Positive NAND Buffers (Hitachi Semiconductor)
  • 74LS374 - OCTAL D-TYPE TRANSPARENT LATCHES AND EDGE-TRIGGERED FLIP-FLOPS (Texas Instruments)
  • 74LS374 - Octal D-type Edge-triggered Flip-Flips (Hitachi Semiconductor)
  • 74LS374 - Octal D-Type Flip-Flop (onsemi)
Other Datasheets by Signetics

Full PDF Text Transcription

Click to expand full text

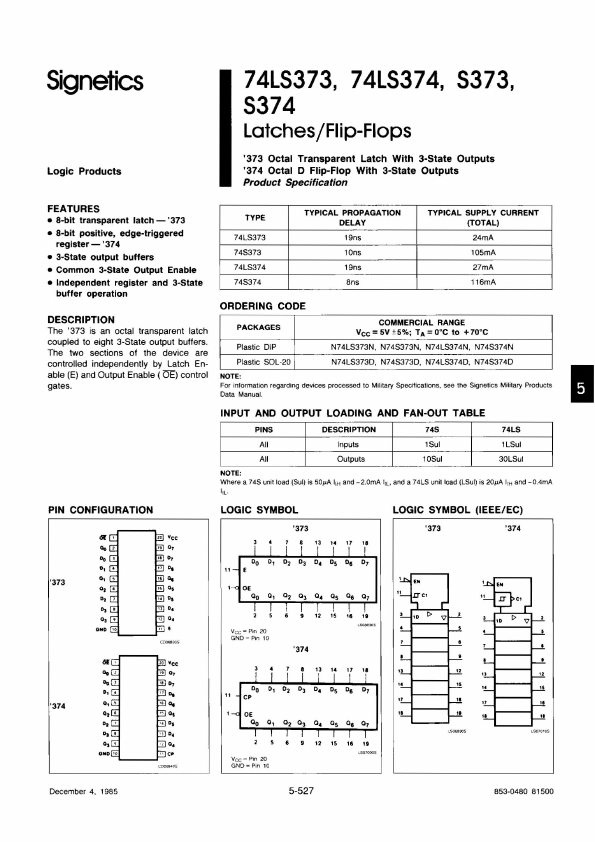

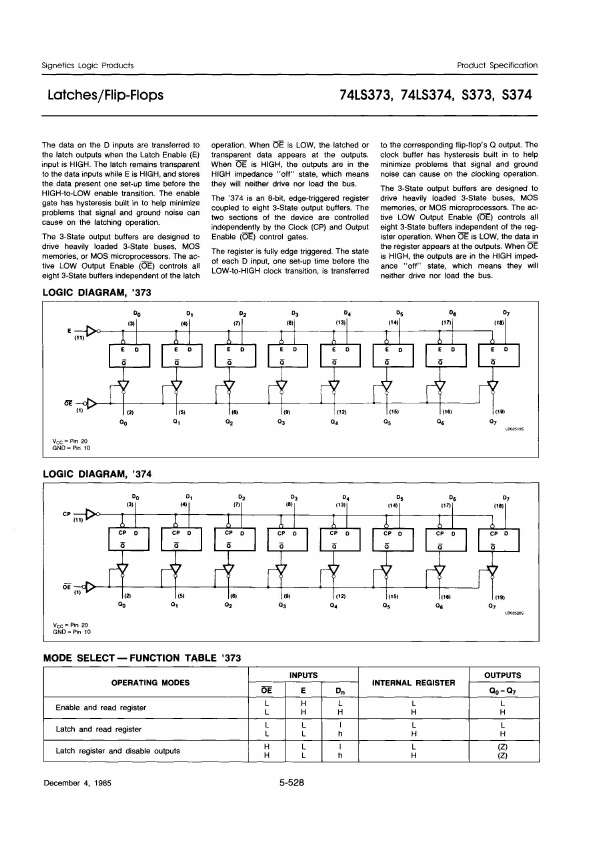

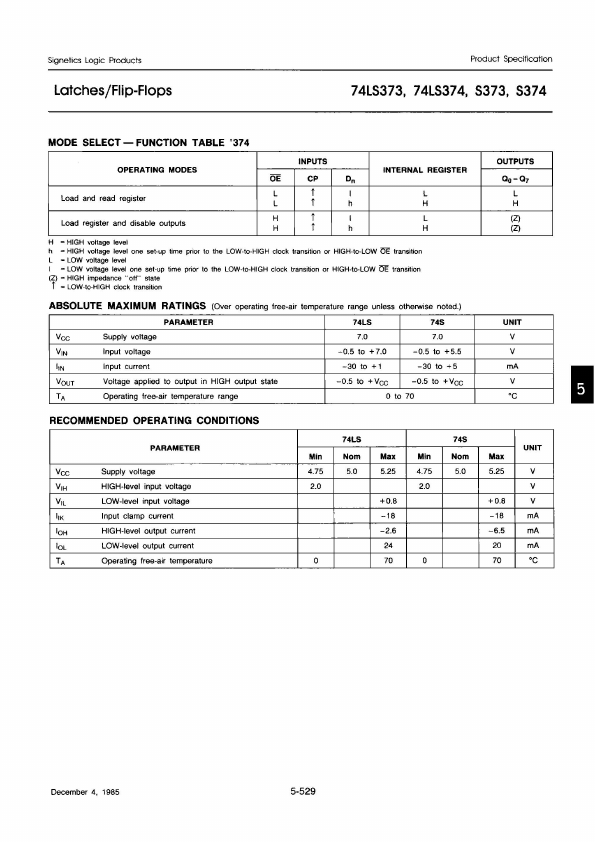

Signetics 74L5373, 74L5374, 5373, 5374 Latches/Flip-Flops Logic Products '373 Octal Transparent Latch With 3-State Outputs '374 Octal D Flip-Flop Wlth 3-State Outputs Product Specification FEATURES • 8-bit transparent latch - '373 • 8-bit positive, edge-triggered register- '374 • 3-State output buffers • Common 3-State Output Enable TYPE 74LS373 74S373 74LS374 TYPICAL PROPAGATION DELAY 19ns 10ns 19ns TYPICAL SUPPLV CURRENT (TOTAL) 24mA 105mA 27mA • Independent register and 3-State 74S374 ans buffer operation 116mA ORDERING CODE DESCRIPTIO N The '373 is an octal transparent latch PACKAGES COMMERCIAL RANGE Vcc = 5V ±5%; TA= 0°C to + 10°c coupled to eight 3-State output buffers.
