SA1622 - AUDIO PREAMPLIFIER

SA1622 Description

SA1622 AUDIO PRE-AMPLIFIER&POWER AMPLIFIER .
The SA1622/S/A/B is a monolithic audio power amplifier IC.

SA1622 Features

* Option stereo and BTL power amplifier by OPT pin.
* Built-in electrical volume
* Built-in ripple filter
* Audio Power amplifier output
* Stereo mode SA1622S/A/B :110 mW (Typ. ), VCC=3 V, RL=8Ω SA1622:450 mW (Typ. ), VCC=6 V, RL=8 Ω
* BTL mode SA1622S/A/B:320 mW (Typ. ), VCC=3

📥 Download Datasheet

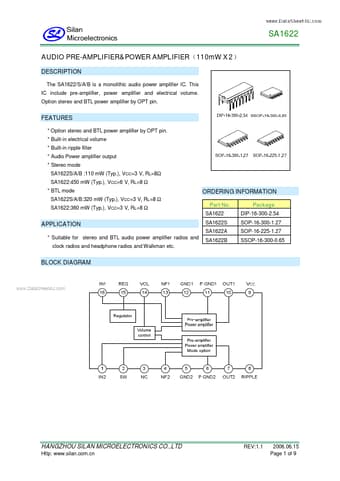

Preview of SA1622 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA1622
Manufacturer
Silan Microelectronics
File Size
227.08 KB
Datasheet
SA1622_SilanMicroelectronics.pdf
Description
AUDIO PREAMPLIFIER
