SA2111C - 3V AM/FM MPX TUNER

SA2111C Description

SA2111C 3V AM/FM +MPX TUNER IC(FOR MECHANICAL TUNING) .
The SA2111C is AM/FM single-chip tuner IC, which is designed for portable radios and 3V head phone radios.

SA2111C Features

* Operating supply voltage range: VCC=1.8~7V (Tamb=25°C)
* AM detector coil, FM IFT, IF coupling condenser are not needed.
* For adopting ceramic discriminator, it is not necessary to adjust the FM quad detector circuit.
* Built-in FM MPX VCO circuit
* Built-in varactor diode for

📥 Download Datasheet

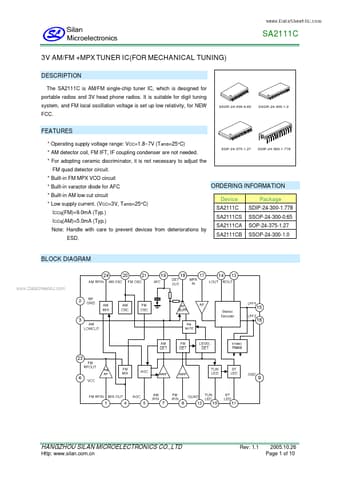

Preview of SA2111C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA2111C
Manufacturer
Silan Microelectronics
File Size
359.07 KB
Datasheet
SA2111C_SilanMicroelectronics.pdf
Description
3V AM/FM MPX TUNER
