SA276 Datasheet - Silan Microelectronics

BRUSH-LESS DC-FAN DRIVER

SA276 Features

* On-chip hall sensor

* Wide operating voltage: 3.5V to 20V

* 400mA (avg) output sink current

* Build-in power-reverse protecting diode only for reverse power connecting ORDERING INFORMATION Device SA276 Package TO-94 APPLICATIONS

* Dual coils brush-less DC fan

* Dual coi

SA276 General Description

SA276 mainly designed for electronic commutation of brush-less DC fan. This IC internally includes the Hall Plate, Regulator, Pre-Amplifier, Comparator, and a pair of complementary open-collector Outputs (DO, DOB). SA276 internally includes power-reverse protecting diode, the protecting diode only p.

SA276 Datasheet (72.64 KB)

SA276 Datasheet Preview — Preview of SA276 PDF

Datasheet Details

Part number:

SA276

Manufacturer:

Silan Microelectronics

File Size:

72.64 KB

Description:

Brush-less dc-fan driver.

📁 Related Datasheet

SA278R00F 2A LDO VOLTAGE REGULATOR (Silan Microelectronics)

SA278R05D 2A LDO VOLTAGE REGULATOR (Silan Microelectronics)

SA278R05DTR 2A LDO VOLTAGE REGULATOR (Silan Microelectronics)

SA278R05F 2A LDO VOLTAGE REGULATOR (Silan Microelectronics)

SA278R08D 2A LDO VOLTAGE REGULATOR (Silan Microelectronics)

SA278R08DTR 2A LDO VOLTAGE REGULATOR (Silan Microelectronics)

SA278R08F 2A LDO VOLTAGE REGULATOR (Silan Microelectronics)

SA278R09D 2A LDO VOLTAGE REGULATOR (Silan Microelectronics)

SA278R09DTR 2A LDO VOLTAGE REGULATOR (Silan Microelectronics)

SA278R09F 2A LDO VOLTAGE REGULATOR (Silan Microelectronics)

TAGS

SA276 BRUSH-LESS DC-FAN DRIVER Silan Microelectronics

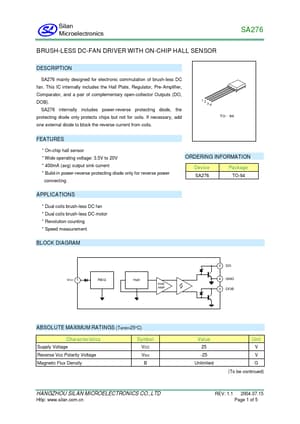

Image Gallery
