SA8507S - VOICE SIGNAL COMPRESSION AND EXPANSION CIRCUIT

This page provides the datasheet information for the SA8507S, a member of the SA8507 VOICE SIGNAL COMPRESSION AND EXPANSION CIRCUIT family.

Description

SA8507 is a automatic gain control system that is used for dynamic range compression and expansion.

According to the companding the signal, this can reduce the noise components.

SA8507 includes compressor, expander, pre-amp, filter amp, limiter and mute/bypath logic.

Features

  • DIP-20-300-2.54 SOP-20-375-1.27 SSOP-20-300-0.65.
  • Wide supply voltage: 2.4V ~ 7V.
  • Easy gain control.
  • Mute/bypath logic.
  • Data in/out pin.

📥 Download Datasheet

Datasheet preview – SA8507S

Datasheet Details

Part number SA8507S
Manufacturer Silan Microelectronics
File Size 135.49 KB
Description VOICE SIGNAL COMPRESSION AND EXPANSION CIRCUIT
Datasheet download datasheet SA8507S Datasheet
Additional preview pages of the SA8507S datasheet.

📁 Similar Datasheet

  • SA85 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR (SEMITECH)
  • SA85 - AXIAL LEAD TRANSIENT VOLTAGE SUPPRESSORS (MIC)
  • SA85 - Transient Voltage Suppression (TVS) Diodes (Crydom)
  • SA85 - Transient Voltage Suppressors (Microsemi)
  • SA85 - Transient Voltage Suppressors (Crownpo)
  • SA85 - TRANSIENT VOLTAGE SUPPRESSOR (GME)
  • SA85 - TRANSIENT VOLTAGE SUPPRESSOR (DC COMPONENTS)
  • SA85 - 500W TRANSIENT VOLTAGE SUPPRESSOR (Won-Top Electronics)
  • SA85 - TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR (General Semiconductor)
  • SA85 - TRANSIENT VOLTAGE SUPPRESSOR (EIC discrete)
Other Datasheets by Silan Microelectronics
  • SA8507 - VOICE SIGNAL COMPRESSION AND EXPANSION CIRCUIT
  • SA8507A - VOICE SIGNAL COMPRESSION AND EXPANSION CIRCUIT
  • SA8507D - VOICE SIGNAL COMPRESSION AND EXPANSION CIRCUIT

Full PDF Text Transcription

Click to expand full text

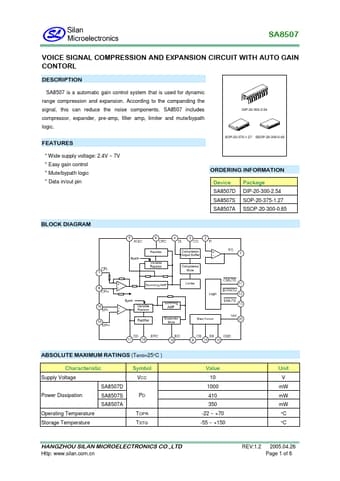

SA8507 VOICE SIGNAL COMPRESSION AND EXPANSION CIRCUIT WITH AUTO GAIN CONTORL DESCRIPTION SA8507 is a automatic gain control system that is used for dynamic range compression and expansion. According to the companding the signal, this can reduce the noise components. SA8507 includes compressor, expander, pre-amp, filter amp, limiter and mute/bypath logic. FEATURES DIP-20-300-2.54 SOP-20-375-1.27 SSOP-20-300-0.65 * Wide supply voltage: 2.4V ~ 7V * Easy gain control * Mute/bypath logic * Data in/out pin ORDERING INFORMATION Device SA8507D SA8507S SA8507A Package DIP-20-300-2.54 SOP-20-375-1.27 SSOP-20-300-0.
