SC1088

AUTO SEARCH TUNING FM RADIO RECEIVER

SC1088 Features

* SOP-16-225-1.27

* Equipped with all stages of a mono receiver from antenna to audio output.

* Mute Circuit

* Search tuning with a single varicap diode

* Mechanical tuning with integrating AFC ORDERING INFORMATION

* AM application supported

* Power supply polarity prote

SC1088 General Description

The SC1088 is a bipolar integrated circuit for use in mono portable and pocket radios. It is used when a minimum of peripheral components (of small dimensions and low costs) is important. The circuit contains a frequency-locked-loop(FLL) system with an intermediate frequency(IF) of about 70kHz. Sel.

SC1088 Datasheet (216.96 KB)

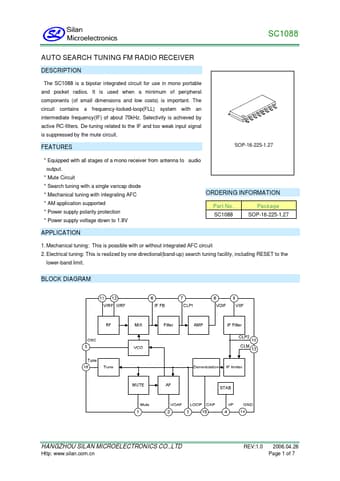

Preview of SC1088 PDF

Datasheet Details

Part number:

SC1088

Manufacturer:

Silan Microelectronics

File Size:

216.96 KB

Description:

Auto search tuning fm radio receiver.
