SC2268 Datasheet - Silan Microelectronics

REMOTE CONTROL ENCODER

SC2268 Features

* makes SC2268 a must in every fan and other electrical home appliance remote control application. SC2268 FEATURES

* CMOS Technology

* Low power consumption

* Very high noise immunity

* Wide range of operating voltage: Vcc=2.2 ~ 5.0 Volts

* Transmits signals to a maximum of 8 cha

SC2268 General Description

The SC2268 is a remote control encoder utilizing CMOS Technology specially designed for use with the SC2128. Using a special coding technique, SC2268 increases noise immunity to a very great extent. It is housed in 16-Pins DIP Package and has a maximum of eight input channels. Its high performance f.

SC2268 Datasheet (284.68 KB)

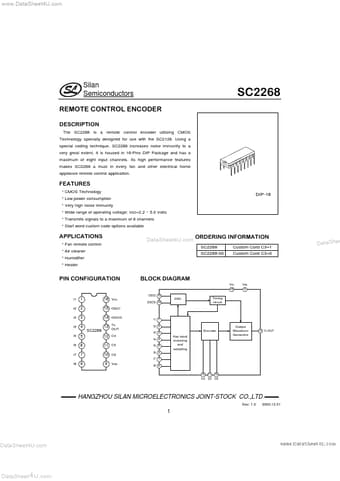

SC2268 Datasheet Preview — Preview of SC2268 PDF

Datasheet Details

Part number:

SC2268

Manufacturer:

Silan Microelectronics

File Size:

284.68 KB

Description:

Remote control encoder.
