SC23M28 - 8KBIT MEMORY CARD IC

SC23M28 Description

SC23M28 8K-BIT MEMORY CARD IC .
SC23M28 is a smart card module utilizing CMOS EEPROM technology.

SC23M28 Features

* 1024 X 8 bit EEPROM
* Byte addressing
* Permanent write-protect for each byte
* 1024 X 1bit memory protection
* Serial three buses interface
* More than 100,000 times write endurance cycles
* Data retention of more than 10 years
* Contact definition and serial inter

SC23M28 Applications

* Used for various IC cards. www. DataSheet4U. com BLOCK DIAGRAM HANGZHOU SILAN MICROELECTRONICS CO. ,LTD Http: www. silan. com. cn REV:1.0 2006.07.21 Page 1 of 10 SC23M28 ABSOLUTE MAXIMUM RATINGS Characteristic Power Supply Voltage Input Voltage Storage Temperature Power Dissipation Symbol VCC

📥 Download Datasheet

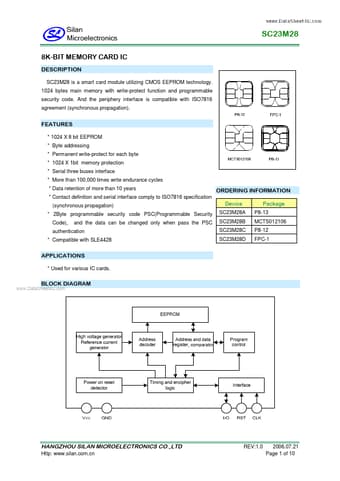

Preview of SC23M28 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SC23M28
Manufacturer
Silan Microelectronics
File Size
335.48 KB
Datasheet
SC23M28_SilanMicroelectronics.pdf
Description
8KBIT MEMORY CARD IC
