SC3010S, SC3010 Datasheet - Silan Microelectronics

SC3010S INFRARED REMOTE CONTROL TRANSMITTER

SC3010 is a remote control transmitter utilizing CMOS Technology specially designed for use on general purpose (RC-5) infrared applications with low voltage supply and large debounce time. SC3010 supports 32 systems. Each system has a maximum of 64 commands; thus, SC3010 can provide up to a total of.

SC3010S Features

* CMOS Technology

* Low Voltage Supply

* Supports up to 32 systems

* Single Pin Oscillator

* Bi-phase Transmission Technique

* Provides 2,048 Commands APPLICATIONS

* Television

* VCR

* Audio Equipment

* Multi-Media System

* Personal Computer DIP-28 ORDER

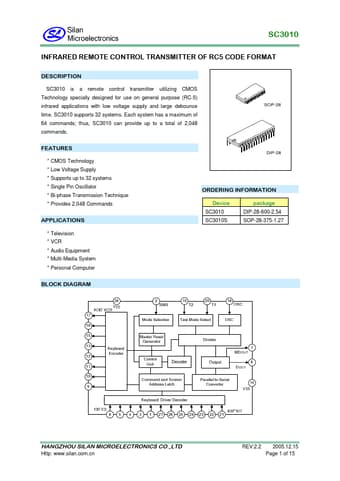

SC3010-SilanMicroelectronics.pdf

SC3010S Datasheet Preview — This datasheet PDF includes multiple part numbers: SC3010S, SC3010. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SC3010S, SC3010

Manufacturer:

Silan Microelectronics

File Size:

319.69 KB

Description:

Infrared remote control transmitter.

Note:

This datasheet PDF includes multiple part numbers: SC3010S, SC3010.
Please refer to the document for exact specifications by model.
